Ever felt like your network’s acting up, but you’re not sure why? There could be many reasons but a smart solution for that is called the loopback plug, which plays a crucial role in network troubleshooting, helping technicians isolate problems and restore connectivity. Let’s discuss what a loopback plug is, how it works, and why you need it.
What is a Loopback Plug?
The Loopback plug acts like a tiny mirror for your network. It reflects the signal sent from your device back to itself, creating a loop. This helps us check if the network device and its connection are working correctly. By using this loopback, we can isolate problems and fix them quickly.
How Does It Work?
Consider a hosepipe. Normally, you’d connect it to a tap and water would flow out. But with a loopback plug, you’re bending the hosepipe back onto itself. The water flows out, but instead of going somewhere, it loops back into the hosepipe.
In the same way, a loopback plug redirects a network signal back to its starting point. This allows us to test if the device sending the signal and the device receiving it are both working correctly. It’s a simple but effective way to isolate problems in a network.
What are the Uses of Loopback Plugs?
Loopback plugs are not typically used by common people. They are specialized tools primarily used by network technicians and IT professionals for troubleshooting network issues. Here are some of their key uses:
1. Testing Network Interfaces
- Verifies if the port is physically working correctly.
- Check if the device’s network interface card (NIC) or other interfaces are functioning properly.
2. Diagnosing Connectivity Issues
- Helps identify issues with cables or connectors.
- Pinpoints problems within the network device itself.
3. Troubleshooting Network Configurations
- Helps identify misconfigured settings on the device.
- Can help isolate software-related issues.
4. Verifying Device Functionality
- Ensures the device can send and receive data correctly.
- Tests specific features like routing, switching, or firewall capabilities.
7 Common Types of Loopback Plugs
| Type of Loopback Plug | Class | Description |
|---|---|---|
| Ethernet Loopback Plug | CAT5, CAT5e, CAT6, CAT6a, CAT7 | Simulates an Ethernet connection by looping back the transmitted signals to the receiving pins. |
| Fiber Optic Loopback Plug | Single-mode, Multi-mode | Loops optical signals back for testing fiber optic transceivers and equipment. |
| USB Loopback Plug | USB 2.0, USB 3.0, USB-C | Tests USB port functionality by sending data packets back to the source. |
| Serial Loopback Plug | DB9, DB25 | Connects the transmit and receive pins in serial ports for communication testing. |
| Audio Loopback Plug | 3.5mm, 6.3mm (¼ inch) | Routes audio signals from output back into input for sound card and audio device testing. |
| HDMI Loopback Plug | Standard HDMI, Mini HDMI, Micro HDMI | Loops HDMI signals back to test ports and video transmission. |
| Coaxial Loopback Plug | BNC, F-Type | Reflects signals within coaxial ports for RF system and cable testing. |
| SFP Loopback Plug | SFP, SFP+, QSFP | Used with transceivers to loop optical or electrical signals for diagnostics. |
| RJ45 PoE Loopback Plug | CAT5, CAT6 | Tests both Ethernet and Power-over-Ethernet (PoE) functionality. |
Let me know if you’d like further details or another format
1. Ethernet Loopback Plugs
- Used to test Ethernet interfaces (RJ-45 ports)
- Typically small, plug-in devices
- Create a loopback on the Ethernet port to test its functionality.

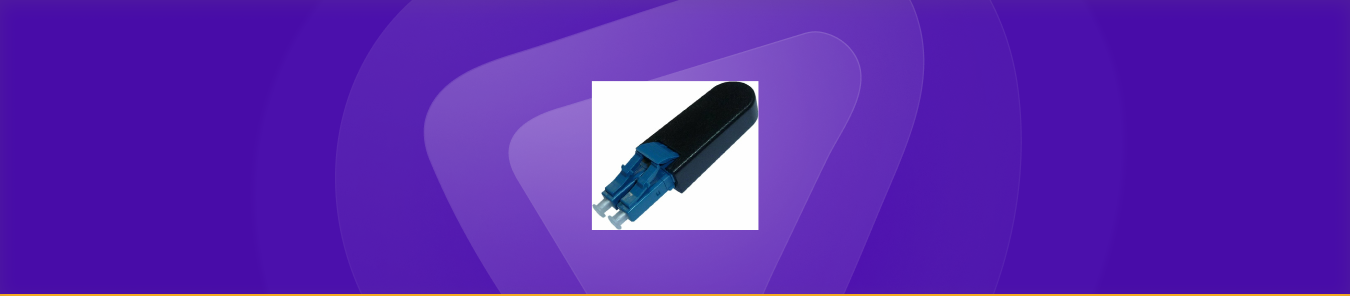

2. Fiber Optic Loopback Plugs
- Used to test fiber optic interfaces
- Can be cables or adapters with specific connectors (e.g., SC, ST, LC)
- Create a loopback on the fiber optic port to test its functionality.
3. Serial Loopback Plugs
- Used to test serial ports (RS-232, RS-485, etc.)
- Often custom-made or soldered onto a connector
- Connect the transmit and receive pins of the serial port to create a loopback.
4. USB Loopback Plugs
- Used to test USB ports and devices
- Can be software-based or hardware-based
- Redirect USB data back to the host device.
5. DB9 Loopback Plug
- Used for testing serial ports, specifically those with a DB9 connector.
- Connects specific pins on the DB9 connector to create a loopback for testing serial communication.
6. Cat5 Loopback Plug
- Used for testing Ethernet interfaces, specifically those using Cat5 cables.
- Connects the transmit and receive pairs on the RJ45 connector to create a loopback for testing Ethernet network connectivity.
7. Cat6 Loopback Plug
- Similar to the Cat5 loopback plug, but used for testing Ethernet interfaces using Cat6 cables.
- Also connects the transmit and receive pairs on the RJ45 connector to create a loopback.
Other specialized Loopback plugs are also available for various network interfaces and protocols and are often custom-made for specific testing needs. The specific type of loopback plug you need will depend on the network interface you’re testing.
What are Loopback Plugs Pins?
Loopback pins are specific connections within a loopback plug that are used to create a closed loop on a network interface. These connections allow for testing the physical connection, data transmission, and other functionalities of the network device.
The specific pin connections vary depending on the type of interface being tested. Here are some common examples:
Security Threats Associated with Loopback Plug
While loopback plugs themselves aren’t inherently malicious, their misuse or unintended consequences can potentially lead to security vulnerabilities. Here are some potential risks:
1. Accidental Network Loops
Improperly used loopback plugs can create unintended network loops, leading to performance degradation, packet loss, and potential network instability. In severe cases, network loops can cause a network outage.
2. Security Testing Risks
While loopback plugs are essential for testing network devices, they can also be used by malicious actors to identify vulnerabilities. If not used carefully, they could expose sensitive network information or create opportunities for attacks.
Mitigating Risks Associated with Loopback Plug
To minimize these risks, follow these best practices:
- Use loopback plugs only for their intended purpose and under controlled conditions.
- Always remove loopback plugs when they are not in use to prevent accidental network loops.
- Ensure your network is configured securely, with firewalls and intrusion detection systems in place with robust encryption protocols like IPSec or OpenVPN with a reliable VPN, such as PureVPN.
- Conduct regular security audits to identify and address potential vulnerabilities.
- Educate users about security best practices, such as avoiding phishing attacks and recognizing suspicious activity.
Frequently Asked Questions
What is the Loopback address?
A loopback address is a reserved IP address used for testing network interfaces and protocols on a single device. The most common loopback address is 127.0.0.1 for IPv4 and:1 for IPv6.
What is a loopback interface used for?
Loopback interfaces are primarily used for:
- Testing network configurations
- Debugging network issues
- Providing a reliable IP address
- Routing protocols
What is the difference between a cable tester and a loopback plug?
A cable tester is a hardware device used to physically verify the integrity of network cables. It checks for continuity, wire pairs, and potential issues like short circuits or open wires. A loopback plug is a specialized network cable connector that loops the signal back to its source. It’s used to test network interfaces and network cards by simulating a network connection.
Why do we use a loopback adapter?
Loopback adapters are used to isolate network issues by testing the network interface itself; you can determine if the problem lies within the device or the network infrastructure. It is also used to verify network configurations and troubleshoot network connectivity by using a loopback plug, you can check if the network card is functioning properly and if the device can communicate with itself.
How does a loopback plug work?
A loopback plug works by connecting the transmit and receive pins of a device, creating a closed circuit. This allows the device to send signals to itself for testing and diagnosing communication ports, ensuring proper functionality.
In Summary
Loopback plugs are a valuable tool in any network engineer’s toolkit. Their simplicity and effectiveness make them ideal for isolating network problems and ensuring proper device functionality. However, remember to use them with caution and follow security best practices to avoid unintended consequences.
